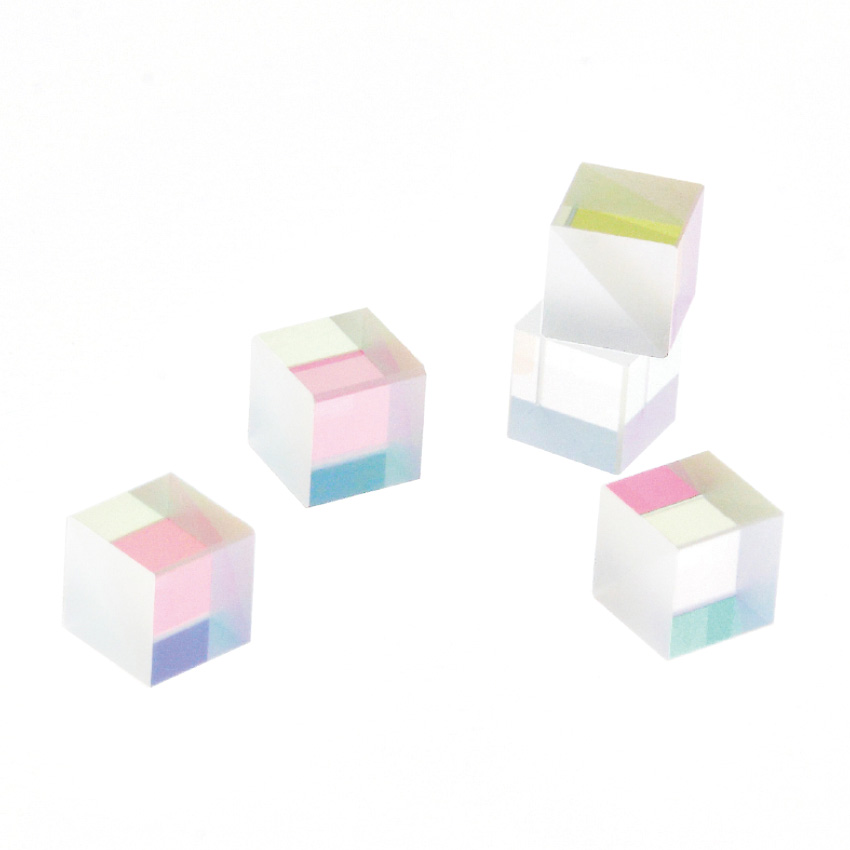

Beamsplitter Cubes

Split and recombine laser beams or broadband sources with these beamsplitter cubes that offer both polarization insensitivity and high throughput.

Coherent non-polarizing beamsplitter cubes use a metallic–dielectric coating that maintains transmission and reflection of the s- and p-polarization states to within 5% of each other, thus minimizing the polarization sensitivity of an optical system.

옵트인 네! Coherent 프로모션 Coherent 이메일로 받아보고 싶습니다.

필수 입력란

개인정보 처리방침

Beamsplitter Cube Capabilities

Choose size, wavelength range, and anti-reflection coating options to meet your exact requirements.

데이터시트

BeamSplitter Cubes

Typical Beamsplitter Specifications
재료	N-BK7 or fused silica
Flatness	λ/4 @ 632.8 nm
Surface Quality	40–20
Beam Deviation	<3 arc minute
Incidence Angle	0°±3°
Transmission	Ts = Tp = 50%±5%
Reflection	Rs = Rp 50%±5%
코팅	Non-polarizing beamsplitter coating on the hypotenuse Optional AR coating on input/output faces
